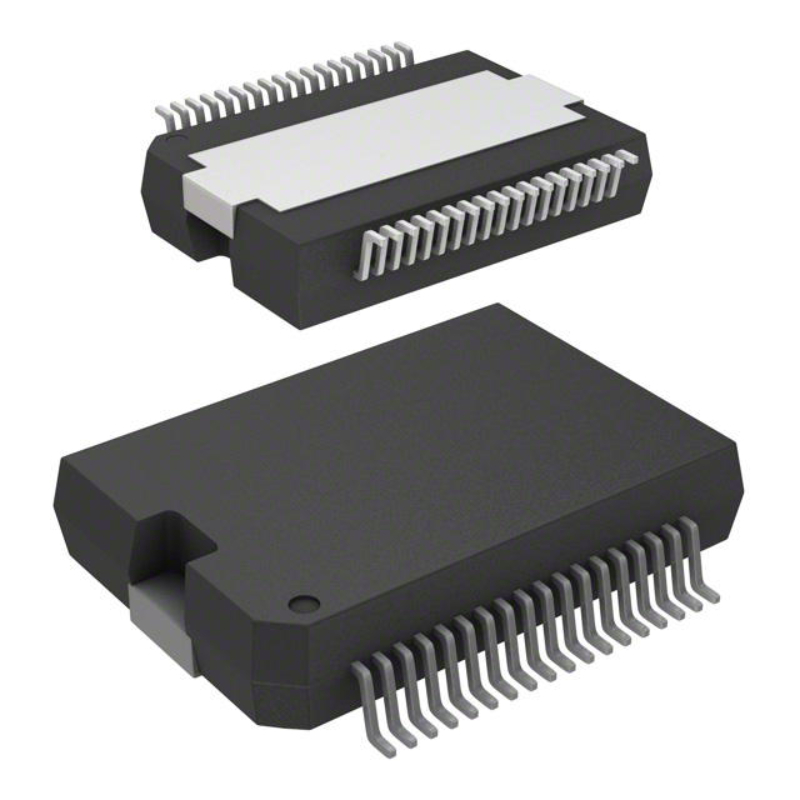

VN808CMTR-E

The VN808CMTR-E is a high-side driver IC designed for automotive applications. It is specifically designed to drive resistive, inductive, and capacitive loads in automotive environments.

The IC is built using STMicroelectronics’ VIPower technology, which allows it to handle high voltage and current levels while providing protection features for robust operation. It can handle a supply voltage range from 4.5V to 28V, making it suitable for a wide range of automotive applications.

The VN808CMTR-E features an integrated current sense diagnostic, which allows the detection of open-load and short-circuit conditions. This diagnostic feature ensures the safe operation of the driver and helps in fault detection and troubleshooting.

The driver IC also includes a thermal shutdown protection circuit, which prevents the IC from overheating and damaging itself or the connected load. This protection feature ensures the reliability of the driver in harsh automotive environments.

The VN808CMTR-E is commonly used in automotive applications such as driving solenoids, relays, lamps, and motors. It can be used in various automotive systems, including powertrain, body control, lighting, and HVAC (Heating, Ventilation, and Air Conditioning) systems.

Overall, the VN808CMTR-E is a reliable and robust high-side driver IC specifically designed for automotive applications. Its high voltage and current handling capabilities, along with the integrated protection features, make it suitable for a wide range of automotive applications, ensuring safe and reliable operation in challenging environments.
