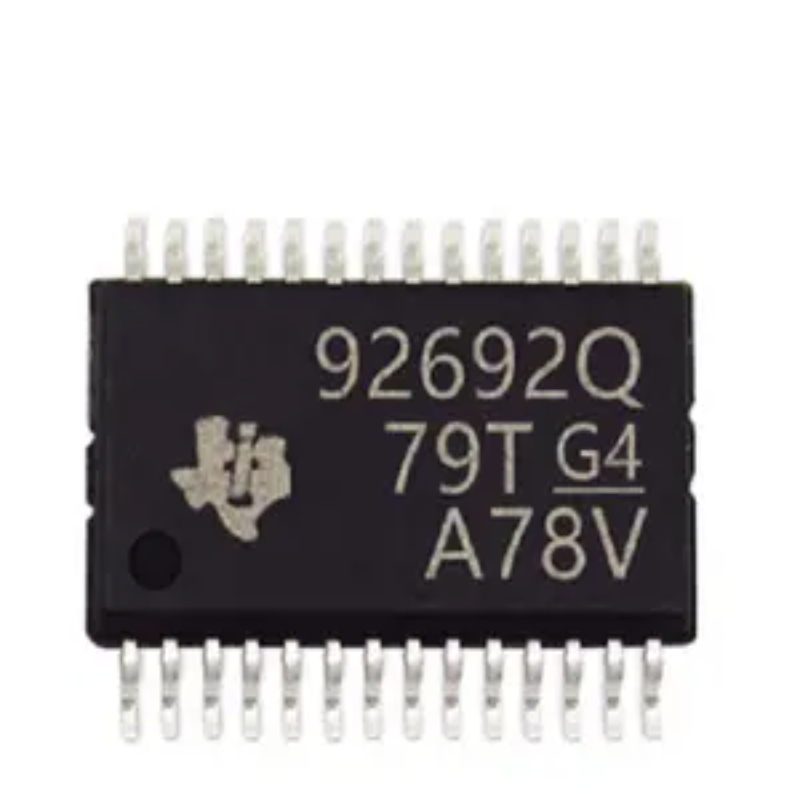

TPS92692QPWPRQ1

The TPS92692QPWPRQ1 is a specific product variant of the TPS92692 series. It is a high-brightness LED (HB LED) driver designed by Texas Instruments. The TPS92692QPWPRQ1 is specifically developed for automotive lighting applications and is compliant with the automotive AEC-Q100 Grade 1 qualification.

Here is a general description of the TPS92692QPWPRQ1:

– LED Driver: The TPS92692QPWPRQ1 is designed to drive high-brightness LEDs used in automotive lighting applications. It provides a constant current source for the LEDs, ensuring precise and uniform illumination.

– Automotive Grade: This variant of the TPS92692 series meets the stringent requirements of the automotive industry. It is qualified to the AEC-Q100 Grade 1 standard, ensuring reliable operation in automotive environments with extended temperature ranges.

– Advanced Features: The TPS92692QPWPRQ1 incorporates various advanced features to enhance performance and efficiency. These features may include adjustable current control, fault detection and protection, thermal management, and compatibility with pulse width modulation (PWM) dimming techniques.

– Robustness and Reliability: The device is designed to withstand the demanding conditions of automotive lighting applications. It typically includes protection against overvoltage, overcurrent, and overtemperature conditions, ensuring the long-term reliability of the LED driver.

As for the application, the TPS92692QPWPRQ1 is primarily used in automotive lighting systems that require precise control and high efficiency. Some potential applications include:

1. Exterior Lighting: The TPS92692QPWPRQ1 can be used in headlights, taillights, turn signals, and other external lighting systems of automobiles. It enables efficient and reliable control of the high-brightness LEDs used in these lighting applications.

2. Interior Lighting: Automotive interior lighting, including ambient lighting, instrument panel lighting, and backlighting, can benefit from the TPS92692QPWPRQ1. It provides accurate current regulation and dimming capabilities for interior LED lighting modules.

3. Daytime Running Lights (DRL): DRL systems, which improve the visibility of vehicles during daylight hours, often utilize high-brightness LEDs. The TPS92692QPWPRQ1 can drive the LEDs in DRL applications, ensuring consistent brightness and efficient operation.
