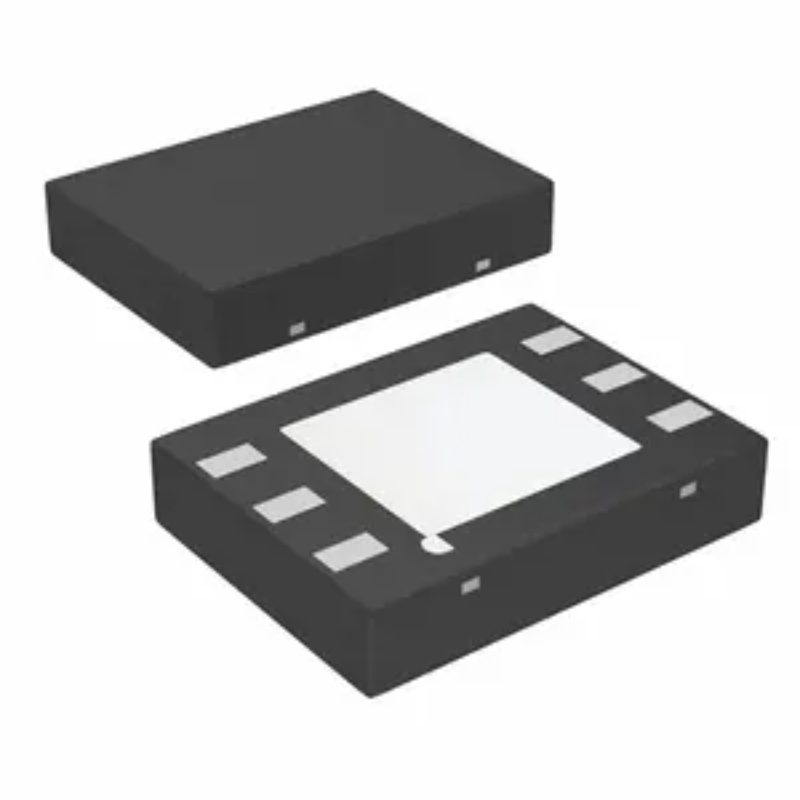

TPS71701QDRVRQ1

The TPS71701QDRVRQ1 is a specific product variant of the TPS71701 series. It is a low-dropout (LDO) voltage regulator manufactured by Texas Instruments. The TPS71701QDRVRQ1 is designed to provide a regulated output voltage with low quiescent current and excellent line and load transient performance.

Here is a general description of the TPS71701QDRVRQ1:

– Input Voltage Range: The TPS71701QDRVRQ1 can accept an input voltage ranging from 2.5V to 5.5V.

– Output Voltage Range: It provides a fixed output voltage that can be set to various values within the range of 0.8V to 3.6V, depending on the specific variant.

– Quiescent Current: The device is designed to minimize quiescent current consumption, making it suitable for battery-powered applications or any power-constrained systems.

– Dropout Voltage: The dropout voltage of the TPS71701QDRVRQ1 is typically very low, which means it can regulate the output voltage even when the input voltage is only slightly higher than the desired output voltage.

As for the application, the TPS71701QDRVRQ1 is commonly used in various electronic systems where a stable and regulated voltage supply is required. Some typical applications include:

1. Portable and battery-powered devices: The low quiescent current and small package size make the TPS71701QDRVRQ1 suitable for powering portable devices such as smartphones, tablets, wearables, and other battery-powered electronics.

2. Industrial and automotive applications: The TPS71701QDRVRQ1 is built to withstand harsh environments, making it suitable for use in automotive electronics, industrial controls, and other rugged applications.

3. Consumer electronics: The device can be utilized in a wide range of consumer electronics, including audio/video equipment, gaming consoles, set-top boxes, and other similar devices.
