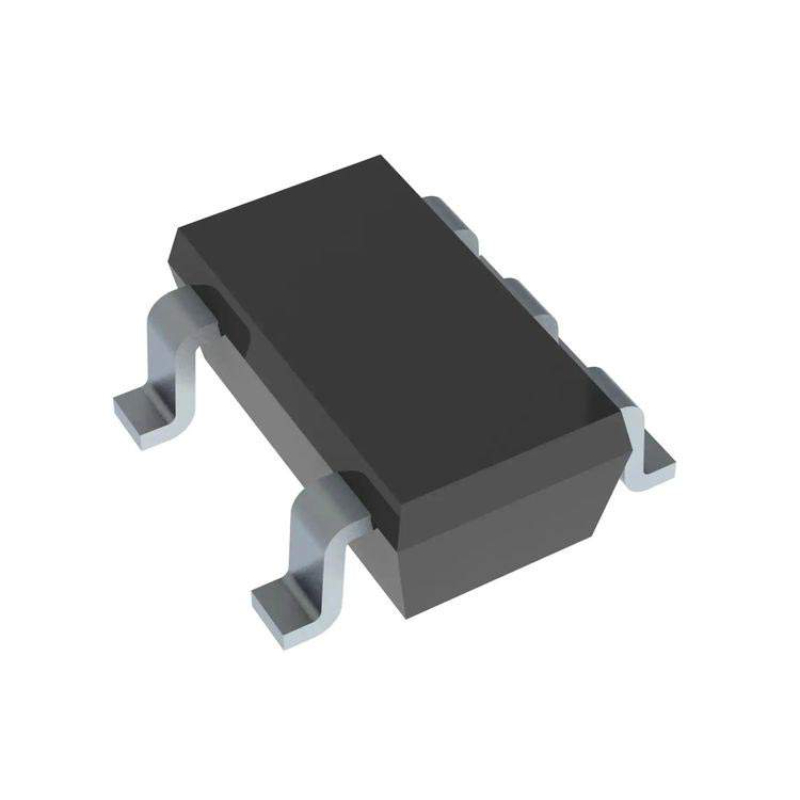

TL331IDBVR

The TL331IDBVR is a voltage comparator integrated circuit (IC) that is commonly used in various electronic applications. It is part of the TL3xx series of comparators manufactured by Texas Instruments.

Here is a brief description of the TL331IDBVR:

1. Function: The TL331IDBVR is a single-channel voltage comparator that compares two input voltages and provides an output based on their relative magnitudes. It has an open-drain output, which means that it can sink current but cannot source it.
2. Supply Voltage: It operates with a supply voltage ranging from 2 V to 36 V, making it suitable for both low and high voltage applications.
3. Input Voltage Range: The TL331IDBVR has a wide input voltage range that extends from the negative supply voltage up to 1.5 V below the positive supply voltage.
4. Low Power Consumption: This comparator is designed to consume low power, making it suitable for battery-powered applications or any application where power efficiency is crucial.
5. Fast Response Time: The TL331IDBVR has a fast response time, ensuring quick and accurate comparisons of input voltages.

Applications of the TL331IDBVR include:

1. Voltage Monitoring: The TL331IDBVR can be used to monitor voltages and provide a digital output based on specific voltage thresholds. It is commonly used in battery management systems, power supply monitoring, and overvoltage/undervoltage protection circuits.
2. Level Shifting: It can be used to shift the voltage levels of digital signals, converting them from one logic level to another. This makes it useful in interfacing different logic families or devices with different voltage requirements.
3. Signal Conditioning: The TL331IDBVR can be used in signal conditioning circuits to compare or amplify analog signals before further processing or measurement.
4. Oscillators and Timers: It can be used in conjunction with external components to build oscillators and timers for various applications, such as timing circuits, pulse generators, and frequency-to-voltage converters.

It’s important to note that this is a general description, and the TL331IDBVR’s specific application may vary depending on the requirements of the circuit or system it is being used in.
