NC7S08M5X

The NC7S08M5X is a single 2-input AND gate integrated circuit (IC) that belongs to the NC7 series of logic gates. It is designed to perform logical AND operations on two input signals and produce an output based on the logical conditions.

This IC is manufactured using advanced CMOS technology, which ensures low power consumption, high-speed operation, and compatibility with various voltage levels. It operates within a supply voltage range of 1.65V to 5.5V, making it suitable for a wide range of applications.

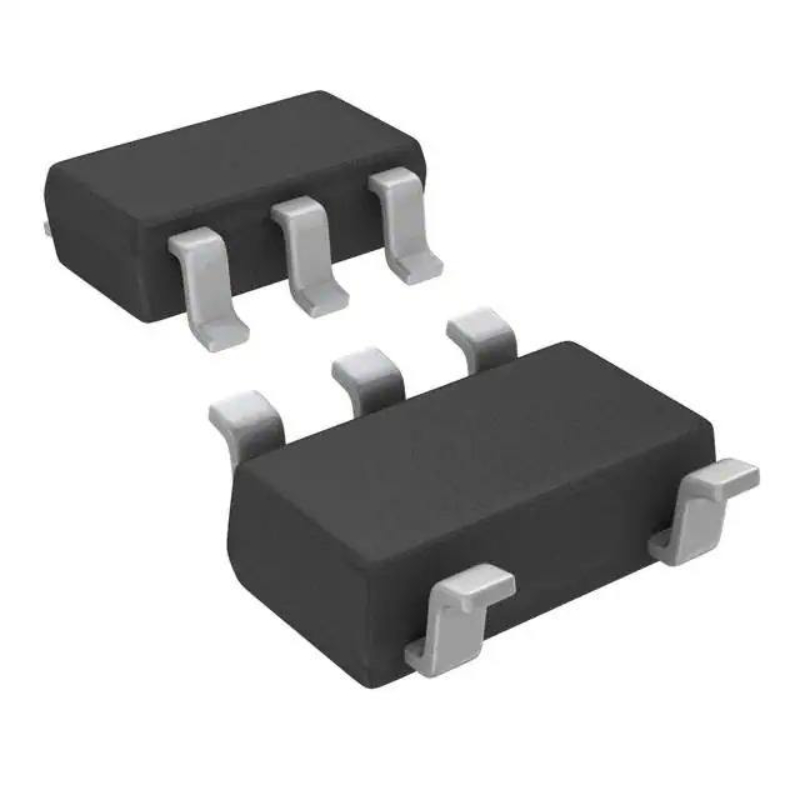

The NC7S08M5X is available in a small SOT-23 package, which makes it ideal for space-constrained applications. It has three pins: two input pins (A and B) and one output pin (Y). When both input signals are high (logic 1), the output pin produces a high logic level (logic 1). In all other cases, the output pin produces a low logic level (logic 0).

The AND gate functionality of the NC7S08M5X makes it useful in various digital logic applications, such as:

1. Data processing: It can be used to combine multiple input signals and generate an output based on specific logical conditions. For example, it can be used in arithmetic circuits, multiplexers, and data transmission systems.
2. Control systems: It can be used in control circuitry to enable or disable certain operations based on specific input conditions. For example, it can be used in motor control circuits, robotics, and industrial automation.
3. Memory systems: It can be used in memory circuits to perform logical operations on address and control signals. For example, it can be used in memory decoders and address multiplexers.
4. Signal conditioning: It can be used in signal conditioning circuits to filter or amplify specific input signals based on logical conditions. For example, it can be used in audio amplifiers, filters, and signal converters.

Overall, the NC7S08M5X is a versatile logic gate IC that finds applications in a wide range of digital systems, where logical AND operations are required. Its small package size, low power consumption, and compatibility with various voltage levels make it suitable for both portable and high-performance electronic devices.
