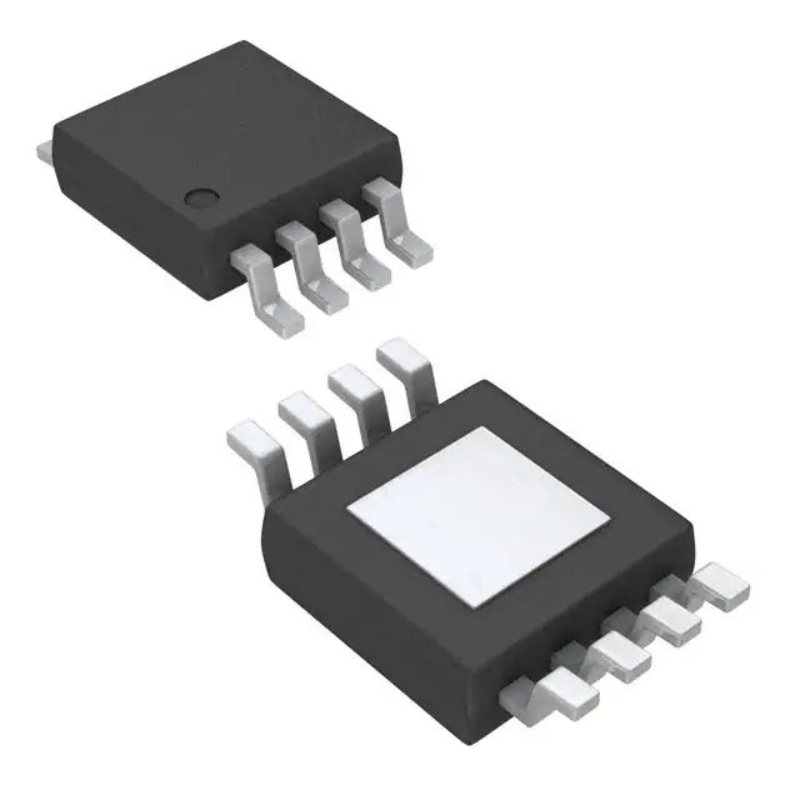

MP1584EN

The MP1584EN is a high-efficiency, synchronous step-down (buck) DC-DC converter integrated circuit (IC). It is designed to provide a regulated output voltage from a higher input voltage source. The IC is commonly used in various electronic applications to efficiently convert voltage levels for power supply purposes.

Here are some key features and specifications of the MP1584EN:

1. Input Voltage Range: The MP1584EN can handle input voltages ranging from 4.5V to 28V, making it suitable for a wide range of power supply applications.
2. Output Voltage Range: The IC can provide a regulated output voltage ranging from 0.8V to 20V, which can be adjusted using external resistors.
3. High Efficiency: With a synchronous rectification architecture, the MP1584EN achieves high conversion efficiency, reducing power losses and heat dissipation.
4. Current Limit Protection: The IC incorporates a current limit function to protect the circuit from excessive current flow, ensuring safe operation.
5. Soft Start: The MP1584EN features a soft-start function, which gradually ramps up the output voltage during startup, preventing excessive inrush current.
6. Thermal Shutdown: To prevent overheating, the IC includes a thermal shutdown feature that shuts down the device if the temperature exceeds a certain threshold.

Applications of the MP1584EN include:

1. Power Supplies: The MP1584EN can be used in various power supply applications, such as in portable devices, embedded systems, industrial equipment, and automotive electronics.
2. Battery Charging: It can be employed in battery charging circuits, allowing efficient voltage conversion from higher input voltages to match the charging requirements of different battery chemistries.
3. LED Lighting: The MP1584EN is suitable for driving LED lighting systems, providing a regulated voltage to power LED strips, bulbs, or backlighting in displays.
4. IoT Devices: With its wide input voltage range and compact form factor, the IC can be used in Internet of Things (IoT) devices, enabling efficient power conversion for sensors, microcontrollers, and wireless communication modules.
5. Audio/Video Equipment: The MP1584EN can be utilized in audio amplifiers, video displays, and other multimedia devices that require stable and regulated power supplies.

It is important to consult the datasheet and application notes provided by the manufacturer for detailed information, circuit design guidelines, and usage recommendations specific to your application.
