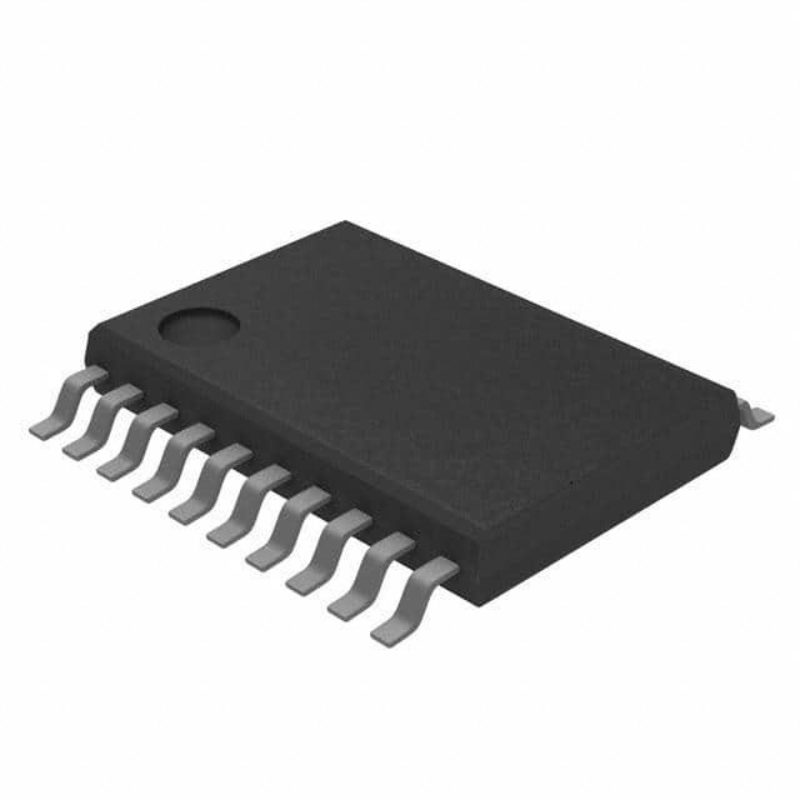

MC9S08SH16CTGR

The MC9S08SH16CTGR is a microcontroller unit (MCU) developed by NXP Semiconductors. It belongs to the S08 family of MCUs and is built on a 8-bit HCS08 core.

The MC9S08SH16CTGR is specifically designed for applications that require low power consumption, high performance, and a rich set of peripherals. It operates at a maximum frequency of 40 MHz and has 16 KB of flash memory, 1 KB of RAM, and 512 bytes of EEPROM.

This MCU offers a wide range of integrated peripherals, including analog-to-digital converters (ADC), timers, serial communication interfaces (UART, SPI, I2C), pulse-width modulation (PWM) modules, and a real-time counter (RTC). These peripherals make the MC9S08SH16CTGR suitable for a variety of applications, such as industrial control systems, consumer electronics, medical devices, and automotive systems.

The MC9S08SH16CTGR also features low power modes, which allow it to operate efficiently in battery-powered or energy-conscious applications. It supports multiple power-saving modes, such as wait, stop, and low-leakage stop, to minimize power consumption during idle or low activity periods.

Overall, the MC9S08SH16CTGR is a versatile and power-efficient MCU that can be used in a wide range of applications that require low power consumption, high performance, and a rich set of peripherals.
