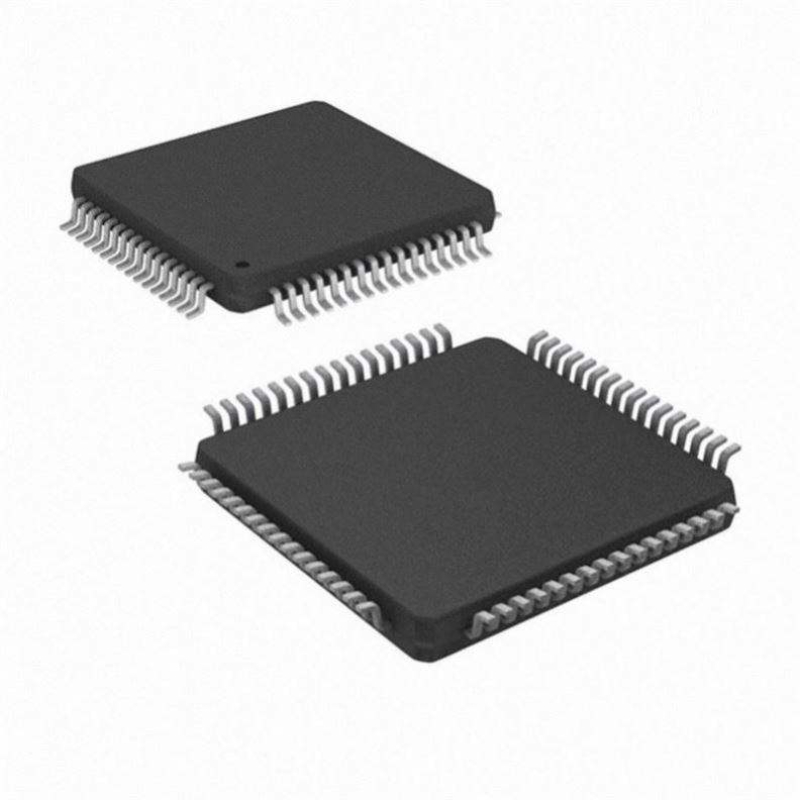

MC908MR16CFUE

The MC908MR16CFUE is a microcontroller from the MC9S08MR family, developed by NXP Semiconductors. It is a 8-bit microcontroller based on the HCS08 core, offering a wide range of features and peripherals.

The MC908MR16CFUE is specifically designed for automotive applications, providing a robust and reliable solution for various automotive systems. It operates at a maximum frequency of 20 MHz and has a flash memory size of 16 KB, allowing for efficient code execution and storage.

Some of the key features of the MC908MR16CFUE include:

1. HCS08 CPU core: The HCS08 core offers a powerful and efficient processing capability, enabling the microcontroller to handle complex tasks efficiently.
2. Flash memory: The 16 KB flash memory provides ample space for storing program code, allowing for flexibility in application development.
3. RAM memory: The microcontroller includes 1 KB of RAM memory, which is used for temporary data storage during program execution.
4. Peripherals: The MC908MR16CFUE offers a wide range of peripherals, including analog-to-digital converters (ADCs), timers, serial communication interfaces (SCI), and general-purpose input/output (GPIO) pins. These peripherals enable the microcontroller to interface with various sensors, actuators, and communication devices.
5. Automotive-specific features: The MC908MR16CFUE includes specific features such as an enhanced watchdog timer, low-voltage detection, and power-on reset circuitry, making it suitable for automotive applications that require high reliability and safety.

Some of the common applications for the MC908MR16CFUE include:

1. Engine control units (ECUs): The microcontroller can be used in automotive ECUs to control and monitor various engine parameters, such as fuel injection, ignition timing, and emissions control.
2. Body control modules (BCMs): The MC908MR16CFUE can be employed in BCMs to manage functions related to lighting, power windows, door locks, and other body-related systems.
3. Instrument clusters: The microcontroller can be utilized in instrument clusters to provide information and control various gauges, indicators, and displays.
4. Anti-lock braking systems (ABS): The MC908MR16CFUE can be integrated into ABS modules to monitor wheel speed and control braking functions for improved vehicle safety.

Overall, the MC908MR16CFUE is a versatile microcontroller designed specifically for automotive applications, offering a combination of performance, reliability, and functionality required in the automotive industry.
