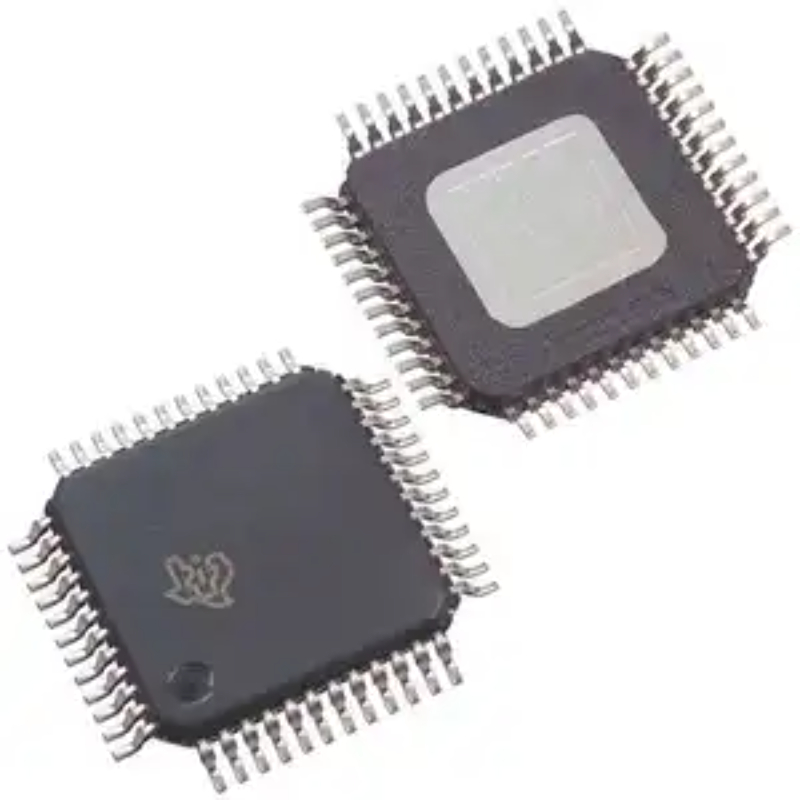

DRV8305NQPHPRQ1

The DRV8305NQPHPRQ1 is a specific product variant of the DRV8305 series, which is a three-phase gate driver IC designed for motor control applications. This variant, denoted by the “NQPHPRQ1” suffix, is specifically designed for automotive applications and meets the requirements and standards set for automotive electronics.

The DRV8305NQPHPRQ1 gate driver IC offers a robust and efficient solution for driving three-phase brushless DC motors in automotive systems. Some key features and applications of the DRV8305NQPHPRQ1 include:

1. Automotive Motor Control: The DRV8305NQPHPRQ1 is primarily used for motor control applications in the automotive industry. It is commonly employed in electric power steering systems, electric vehicle traction control, and other automotive systems that require precise and efficient motor control.

2. Three-Phase Gate Driver: The DRV8305NQPHPRQ1 is specifically designed to drive three-phase brushless DC motors. It provides the necessary gate signals to control the power transistors (MOSFETs or IGBTs) that drive the motor phases, enabling smooth and accurate motor operation.

3. High Efficiency: The gate driver incorporates features that help optimize power efficiency in motor control systems. It minimizes power losses, improves overall system efficiency, and reduces heat dissipation, contributing to improved performance and reliability.

4. Protection Features: The DRV8305NQPHPRQ1 includes various protection features to ensure safe and reliable motor operation. These features may include overcurrent protection, over-temperature protection, and undervoltage lockout (UVLO) to help prevent damage to the motor and driver circuitry.

5. Diagnostic and Monitoring Capabilities: The gate driver IC may provide diagnostic and monitoring capabilities, allowing for the detection and reporting of fault conditions. This helps in identifying issues such as overcurrent or over-temperature events, enabling appropriate actions to be taken for system protection and maintenance.

6. Automotive-Grade: The “NQPHPRQ1” suffix indicates that the DRV8305 variant is designed and qualified for automotive applications. It undergoes rigorous testing and meets the automotive industry’s requirements for temperature range, reliability, and qualification processes.
