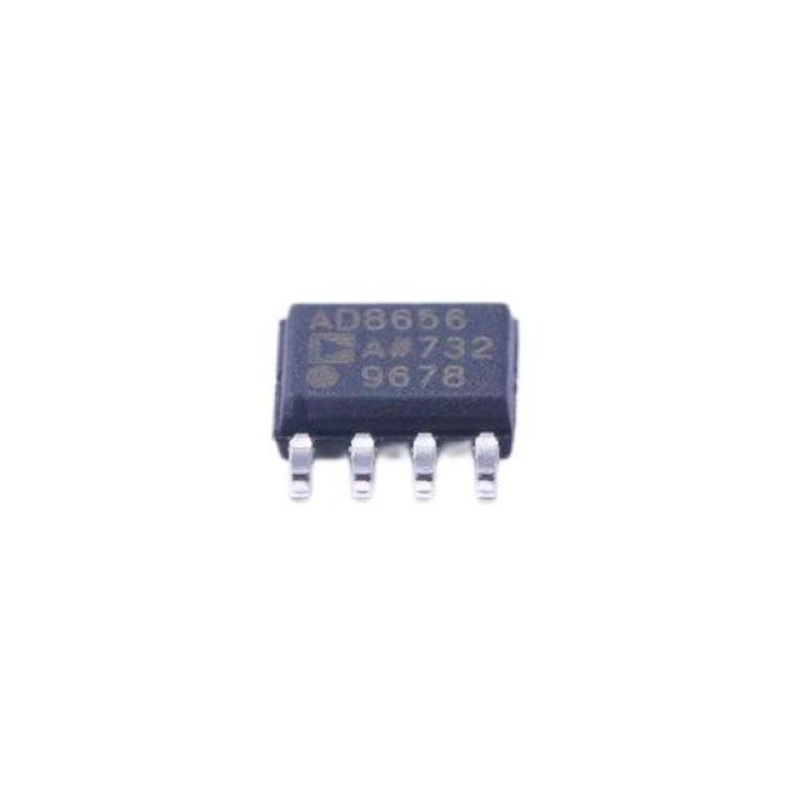

AD8656ARZ-REEL7

The AD8656ARZ-REEL7 is a precision operational amplifier (op-amp) IC manufactured by Analog Devices Inc. It is specifically designed for applications that require high precision and low noise performance.

This op-amp offers a low input offset voltage, low input bias current, and low noise characteristics, making it suitable for precision signal conditioning and amplification tasks. It operates from a single power supply voltage typically ranging from 2.7V to 5.5V.

The AD8656ARZ-REEL7 has a rail-to-rail input and output capability, allowing it to handle signals that extend to the power supply rails. It also provides a wide bandwidth and fast settling time, enabling it to accurately amplify fast-changing signals.

Some possible applications for the AD8656ARZ-REEL7 include:

1. Sensor Signal Conditioning: It can be used to amplify and condition signals from various sensors, such as temperature sensors, pressure sensors, and strain gauges. Its low offset voltage and low noise characteristics help maintain signal integrity and accuracy.

2. Data Acquisition Systems: In data acquisition systems, the AD8656ARZ-REEL7 can serve as an amplifier for analog-to-digital converters (ADCs). It ensures precise amplification of small analog signals before conversion, enhancing the overall accuracy of the system.

3. Measurement and Test Equipment: The high precision and low noise performance of the AD8656ARZ-REEL7 make it suitable for use in measurement and test equipment. It can be employed in applications such as spectrum analyzers, oscilloscopes, and precision voltmeters.

4. Active Filters: The op-amp can be utilized in active filter circuits, such as low-pass, high-pass, and band-pass filters. Its high bandwidth and low noise characteristics contribute to the accurate filtering of signals in various frequency ranges.

5. Audio Applications: The AD8656ARZ-REEL7 can be employed in audio equipment, such as microphone preamplifiers, audio mixers, and headphone amplifiers. Its low noise performance and wide bandwidth help achieve high-quality audio signal amplification.
