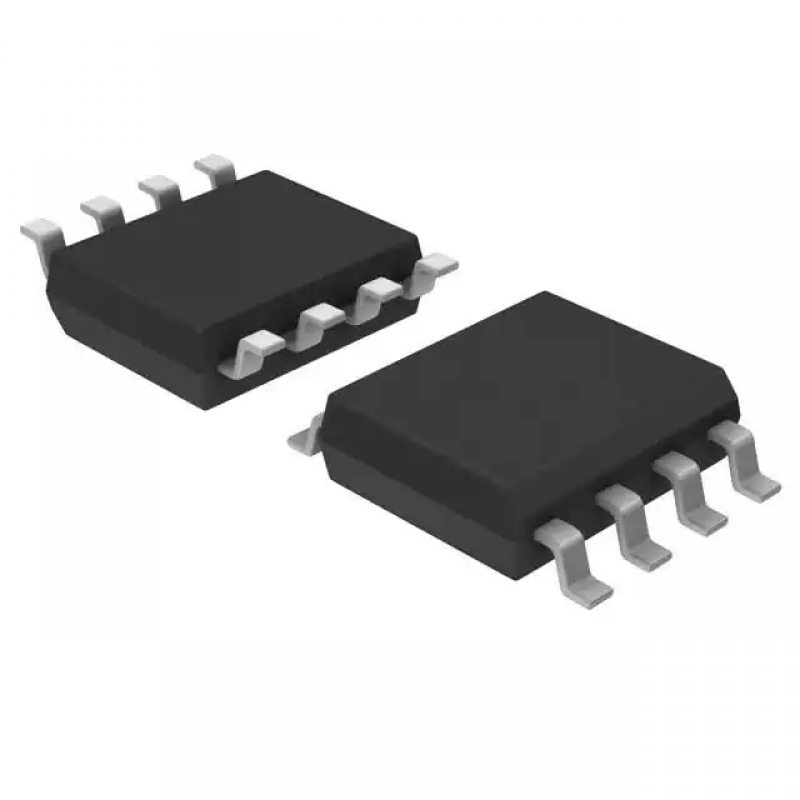

ACS722LLCTR-05AB-T

The ACS722LLCTR-05AB-T is a Hall effect-based current sensor module manufactured by Allegro MicroSystems. It is designed to measure AC or DC currents accurately and efficiently.

The ACS722LLCTR-05AB-T has a current range of -5A to +5A, meaning it can measure currents flowing in both directions. It operates on a supply voltage of 3.0V to 5.5V, making it compatible with a wide range of electronic systems.

This current sensor module features a low-resistance conductor path, which helps in minimizing power loss and improving the overall accuracy of current measurements. It also has a built-in overcurrent detection circuit, which can be used to trigger an alarm or shut down the system in case of excessive current flow.

The ACS722LLCTR-05AB-T is commonly used in various applications where accurate current measurements are required. Some of its typical applications include:

1. Motor control: It can be used in motor control systems to monitor the current flowing through the motor windings. This information is essential for maintaining optimal motor performance and protecting the motor from damage due to overcurrent conditions.
2. Power supplies: The ACS722LLCTR-05AB-T can be used in power supply units to monitor the input and output currents. This helps in ensuring the power supply operates within its rated limits and prevents any potential damage to the connected devices.
3. Battery management systems: It can be employed in battery management systems to monitor the charging and discharging currents of batteries. This information is crucial for optimizing battery performance and preventing overcharging or over-discharging, which can reduce battery life.
4. Energy monitoring: The ACS722LLCTR-05AB-T can be utilized in energy monitoring systems to measure the current consumption of various appliances or devices. This data can be used for energy management, load balancing, and identifying energy-saving opportunities.

Overall, the ACS722LLCTR-05AB-T is a versatile and reliable current sensor module suitable for a wide range of applications that require accurate current measurements.
